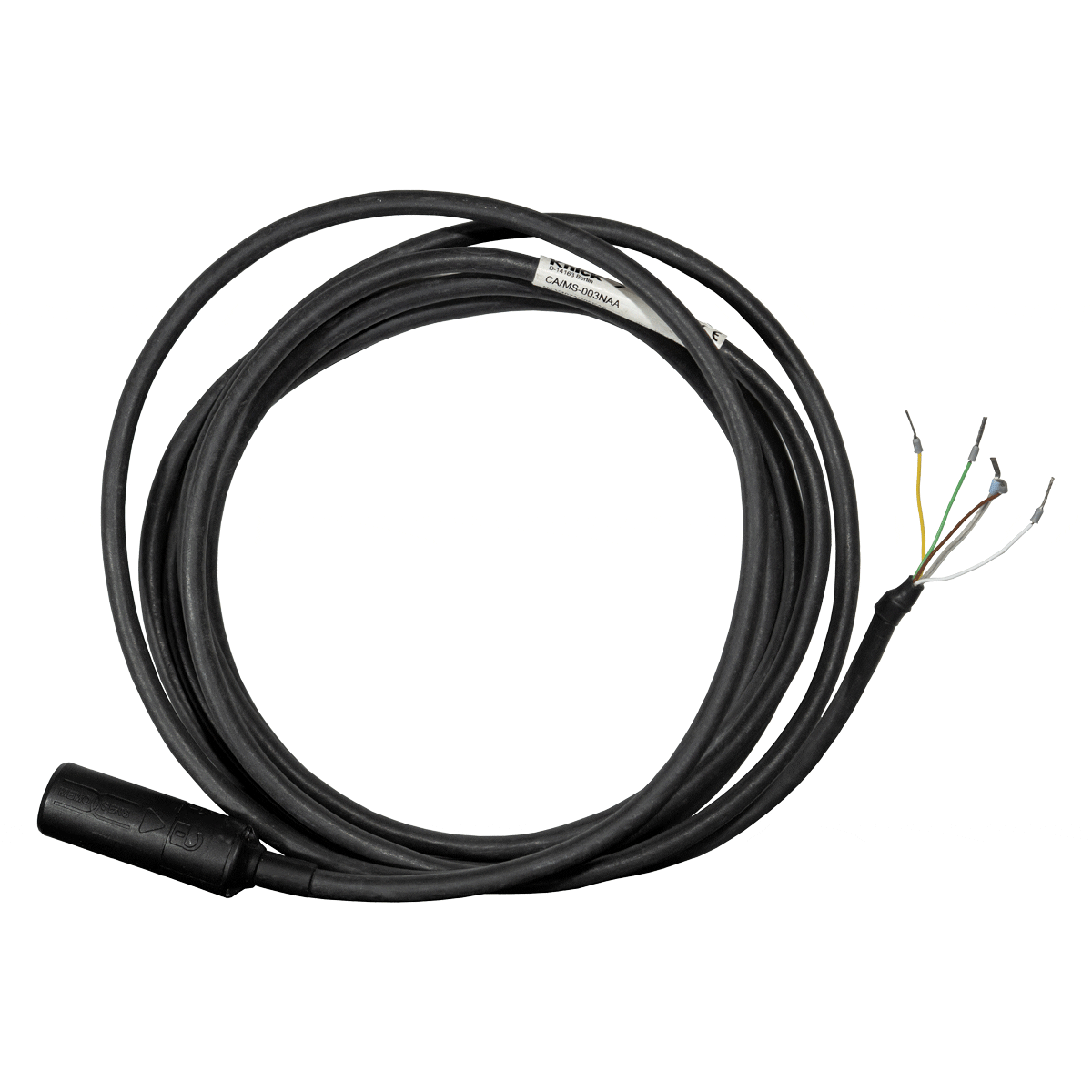

Coiled up Memosens Cable with free ends for transmitter and sensor

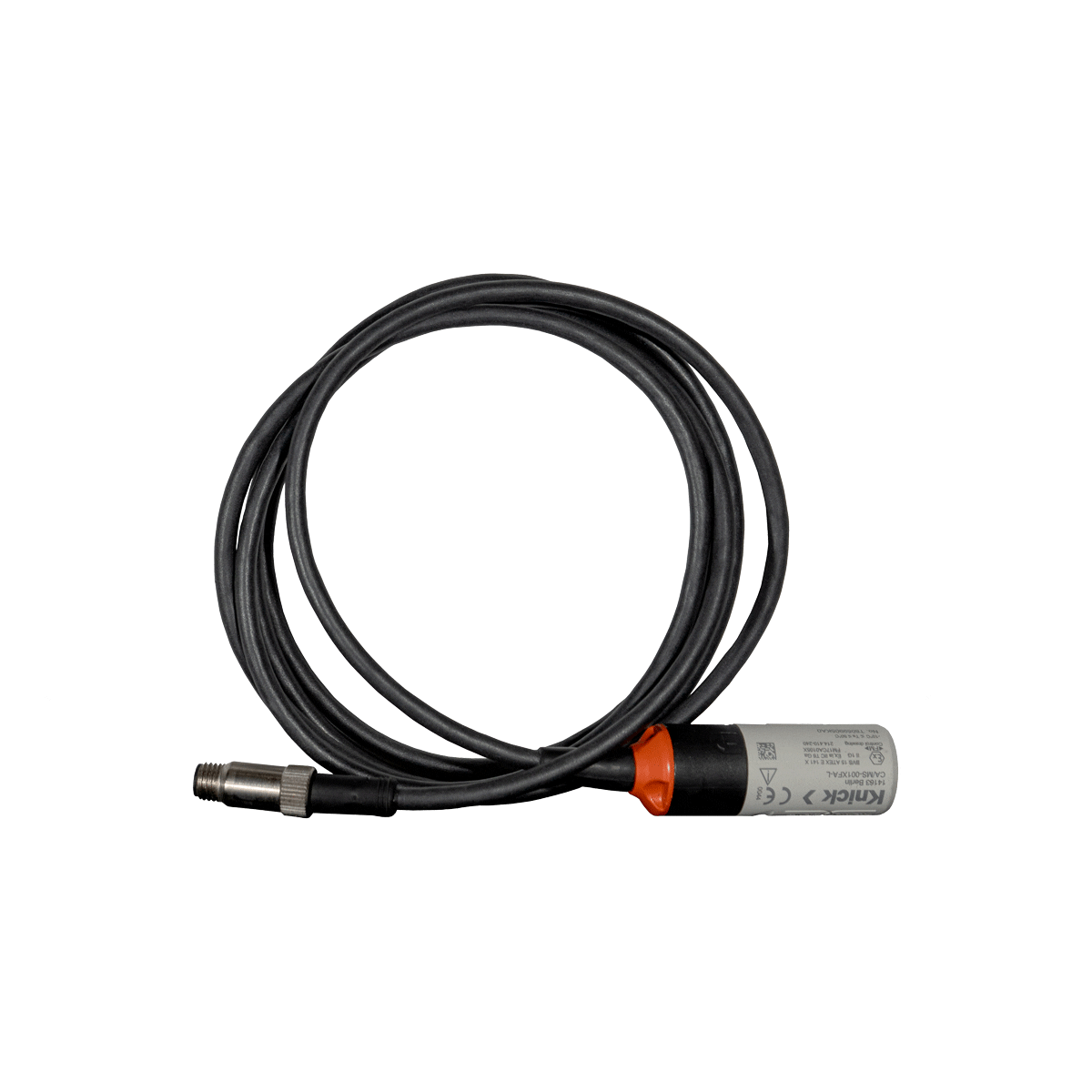

M8 Memosens Cable for Portavo portable meter and sensor

Accessories

Memosens Cable

Digital Sensor Cable

Knick Memosens Cables ensure a reliable connection between Memosens sensors and transmitters, even in harsh environments. The cable is designed for durability and secure, interference-free signal transmission.

Resistant to moisture, corrosion, and interference
Available in general-purpose and Ex-rated versions

Description

Knick Memosens cables provide a reliable connection between Memosens sensors and their transmitters. Utilizing inductive, non-contact transmission, they ensure a fully digital, interference-free signal and power transfer, even in the most demanding industrial environments. With IP68 protection and chemical-resistant construction, Knick Memosens cables deliver long service life, plug-and-play installation, and measurement reliability. Available in both general-purpose and Ex-rated versions, these cables support installations in safe and hazardous areas while maintaining the advantages of Memosens technology: galvanic isolation, moisture resistance, and secure diagnostics. The ferrule version is available in lengths of 3, 5, 10, 20, and even up to 100 meters without any signal loss. A M12 plug version is also available in lengths up to 50 meters.

Specifications

Material	Connecting head: PEEK Cable sheath: TPE
Cable diameter	6.3 mm
Cable	2×2, twisted wire pairs, cable shield
Length	With ferrules: 3, 5, 10, 20 m (up to 100 m available) M12 plug: 3 or 5 m (up to 50 m available)
Ambient temperature (safe area)	Model CA/MS-*N: -20 °C … 135 °C
Ambient temperature (hazardous area)	Model CA/MS-*X: -15 °C … 135 °C
Ingress protection	IP68

Material

Connecting head: PEEK Cable sheath: TPE

Cable diameter

6.3 mm

Cable

2×2, twisted wire pairs, cable shield

Length

With ferrules: 3, 5, 10, 20 m M12 plug: 3 or 5 m

Ambient temperature (safe area)

Model CA/MS-***N**: -20 °C … 135 °C

Ambient temperature (hazardous area)

Model CA/MS-***X**: -15 °C … 135 °C

Ingress protection

IP68

Downloads

Title	Type
Memosens Cable	Manual	DOWNLOAD
DOWNLOAD
