The M4 Knick MP Monitoring Panels are designed to verify the adequacy of process specifications for the measuring device at a single point. These panels apply to a wide range of applications, and include the option for a complete digital Memosens loop on one panel.

Includes Memosens measurement technology
Conditioning according to the ASME PTC 19.11
Plug and play into existing systems
Pre-tubed

Description

The MP Monitoring Panel is designed to monitor low temperature and low-pressure applications for continuous analytical measurements. This compact pre-tubed assembly provides monitoring for analyzing samples. Users must only connect the sample inlet, outlet, and drain. The panel meets ASME PTC-19.11 standards. The Monitoring Panel allows for multiple different configurations, depending on the process conditions, material of construction, and customer requirements. The panels are available with either PVC or Stainless Steel tubing.

Applications for the MP Monitoring Panel

Cooling water
Condensate
Wastewater
Grab sampling

Specifications

Stainless Steel Options
		Single Channel	Multi-Channel

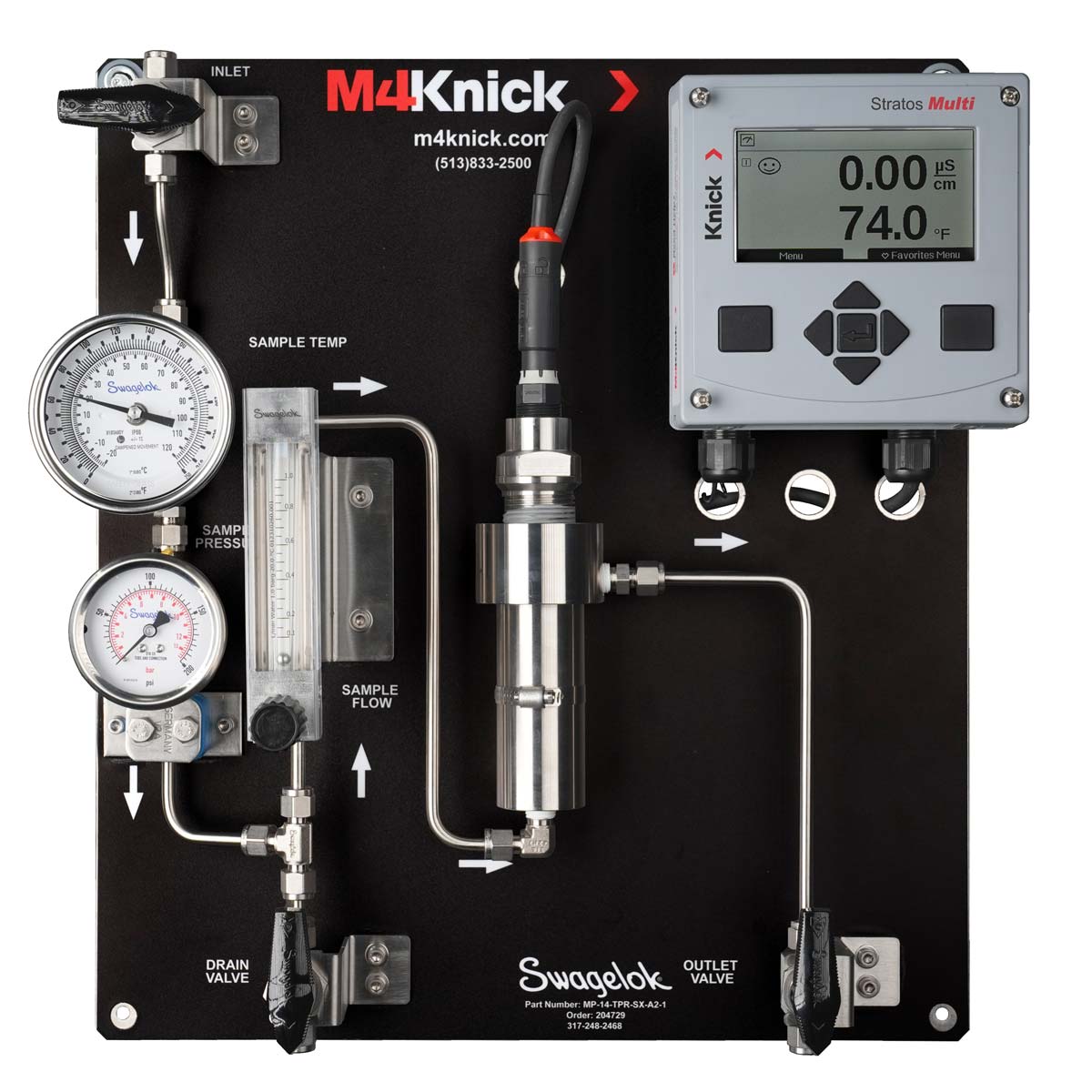

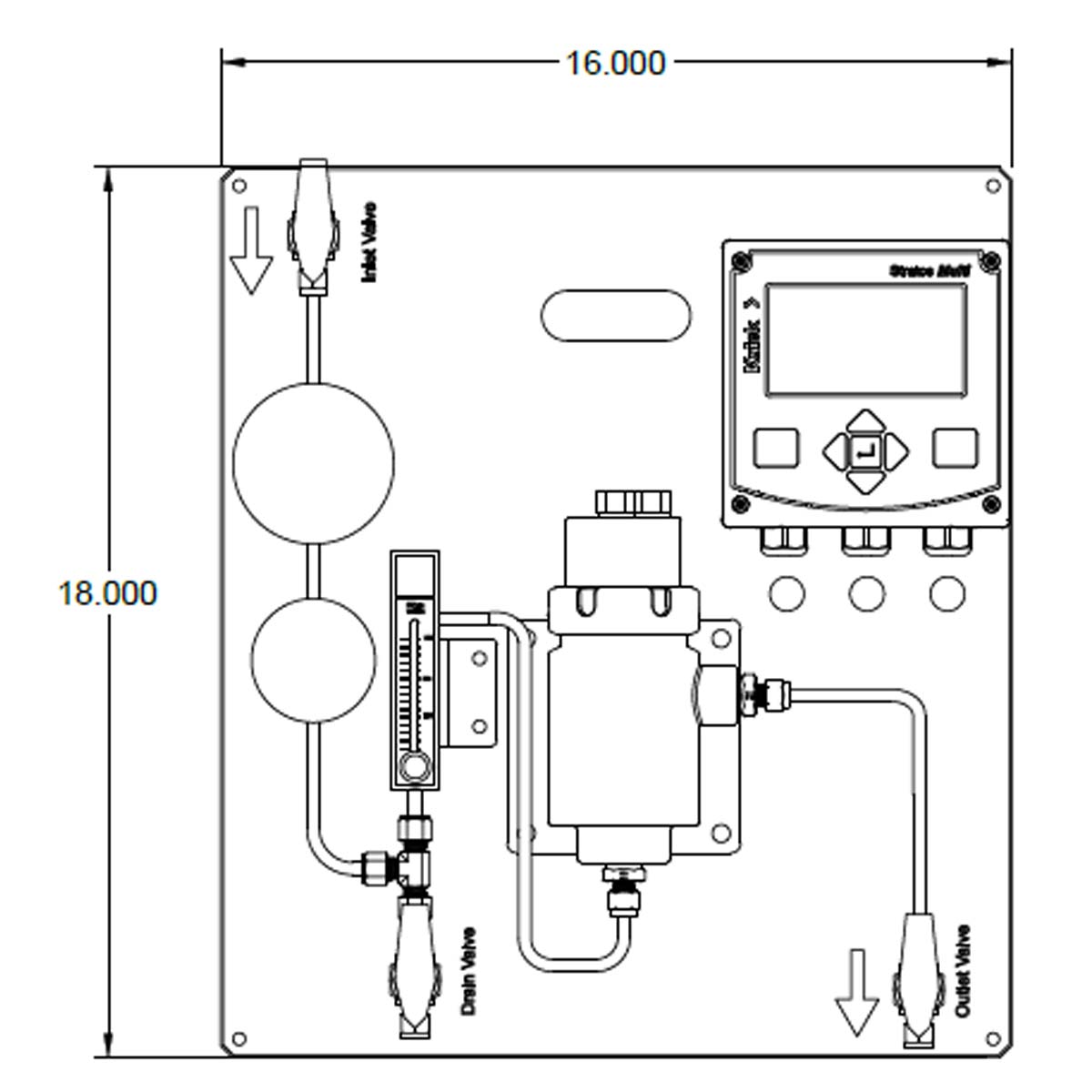

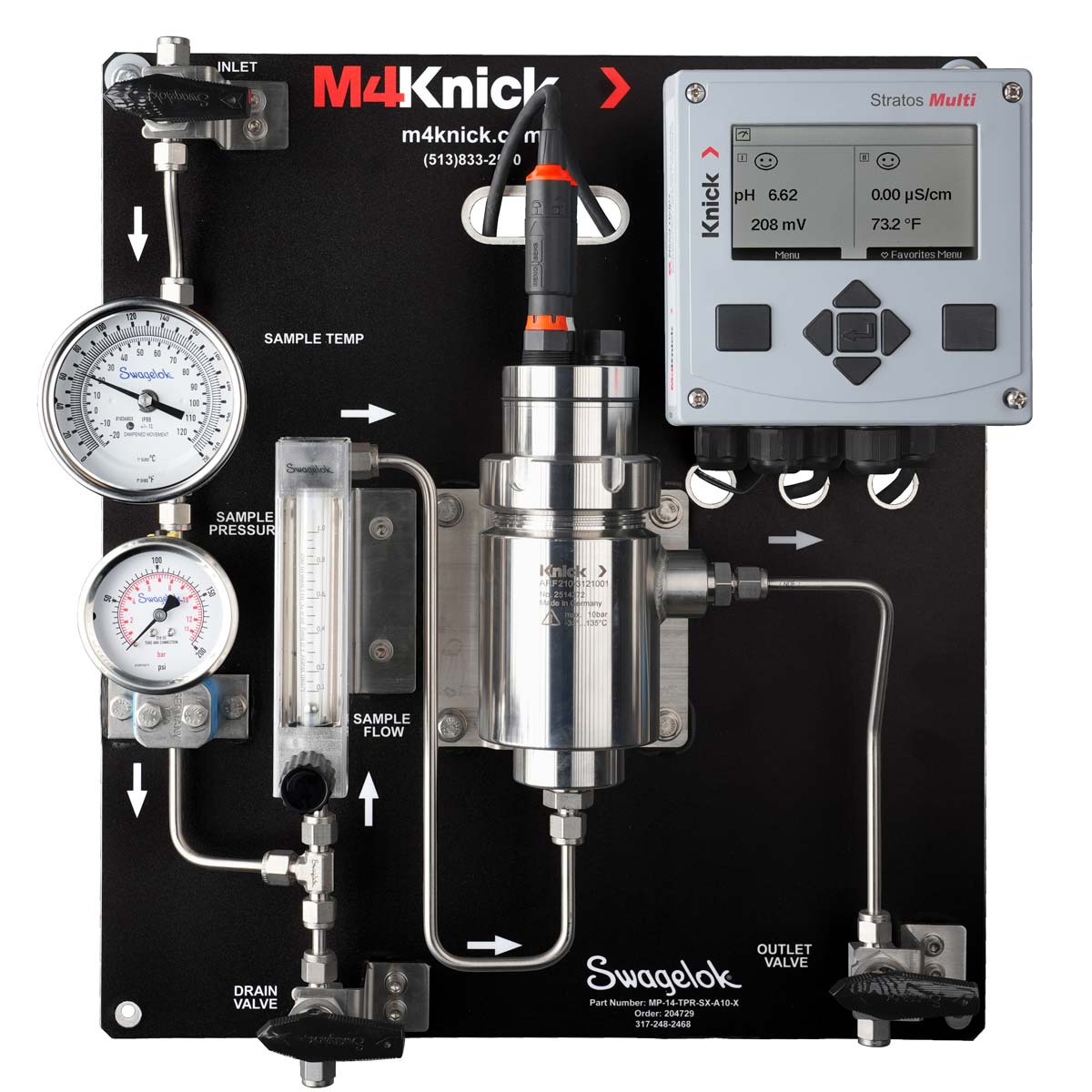

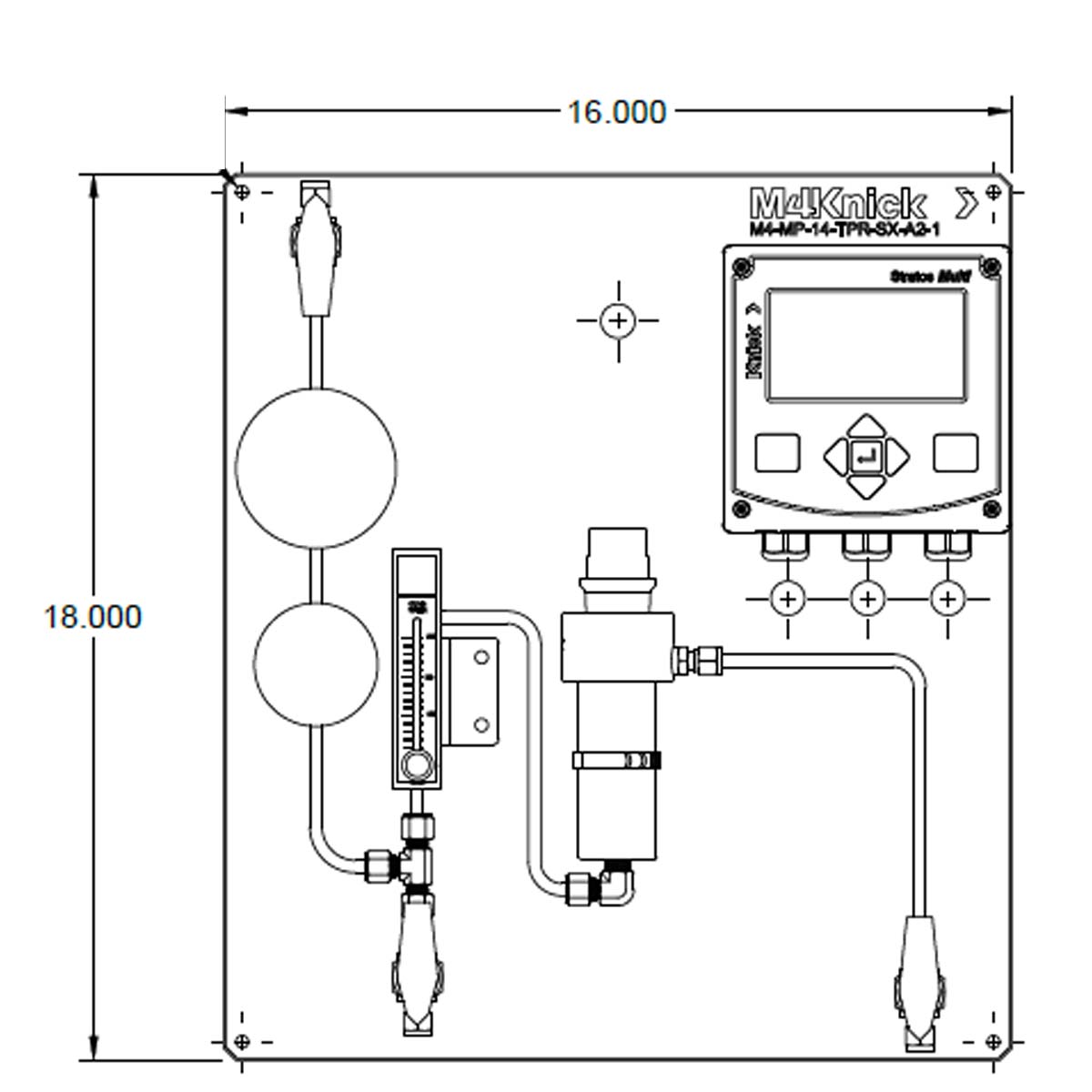

Dimensions		16″ W x 18″ H x 5.25″ D	16″ W x 18″ H x 5.25″ D
Ranges	Pressure	0…145 psig (0…25 bar)	0…145 psig (0…25 bar)
	Temperature	0…302 °F (-17…150 °C)	0…302 °F (-17…150 °C)
Construction	Wetted parts	316 Stainless Steel	316 Stainless Steel

PVC Options
		Single Channel	Multi-Channel

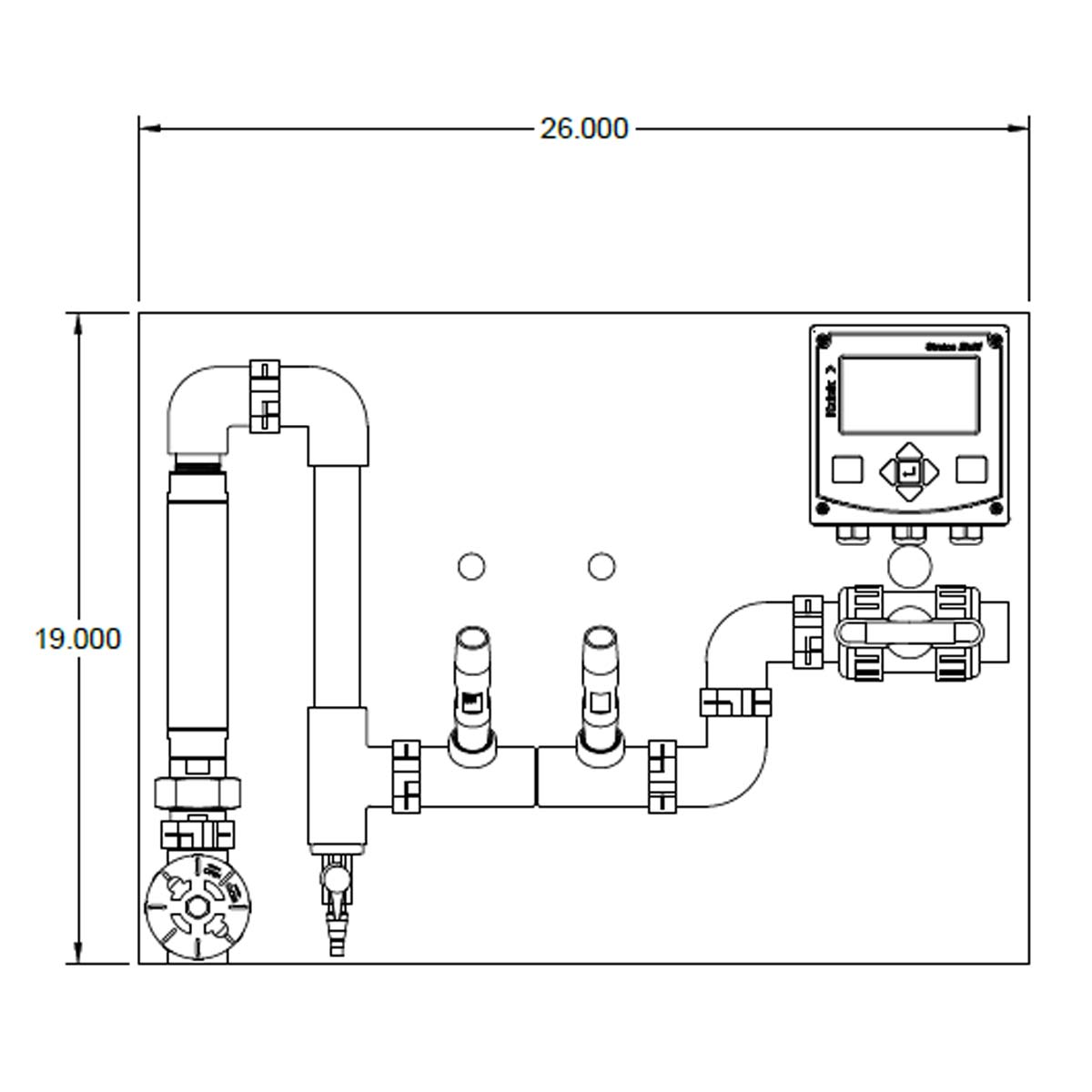

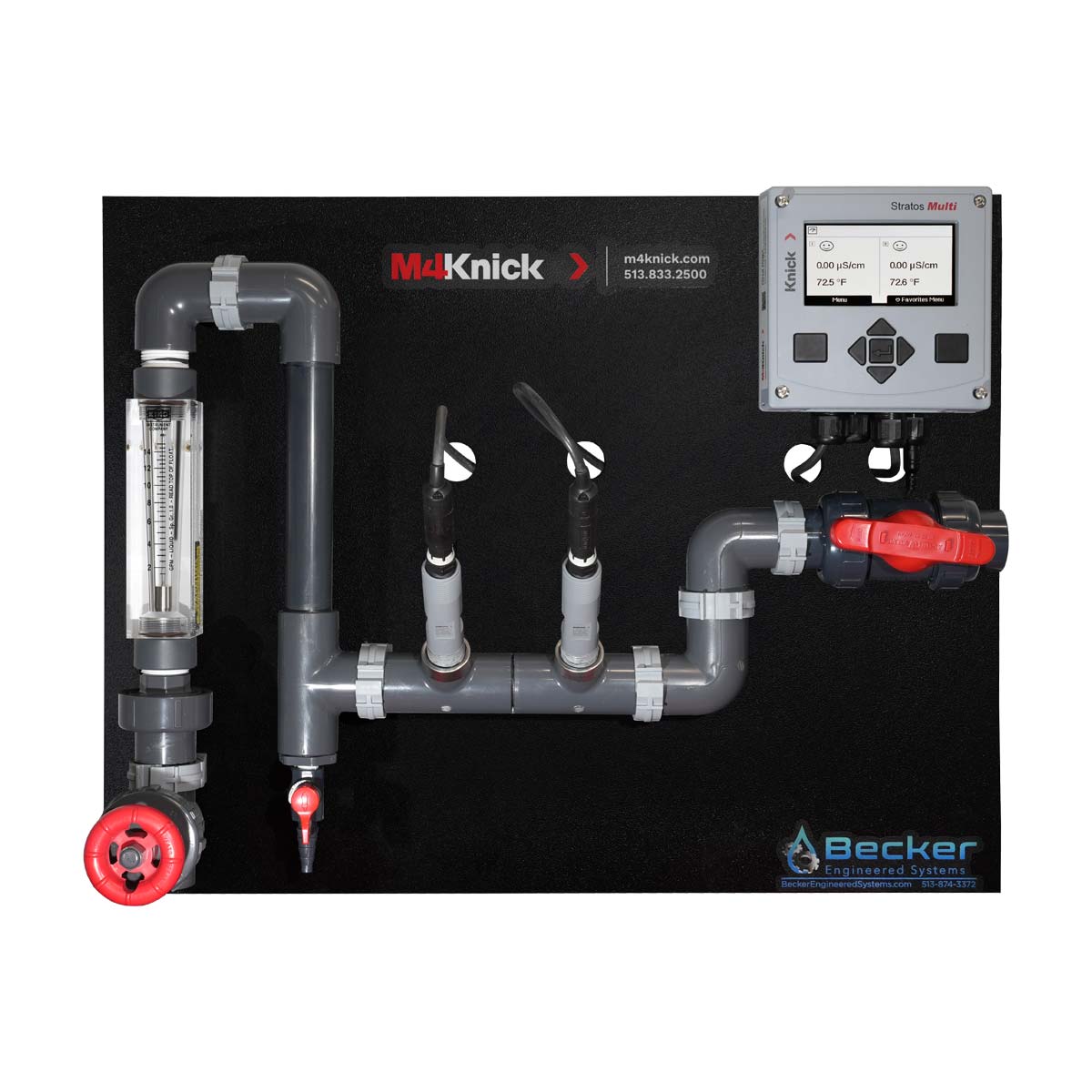

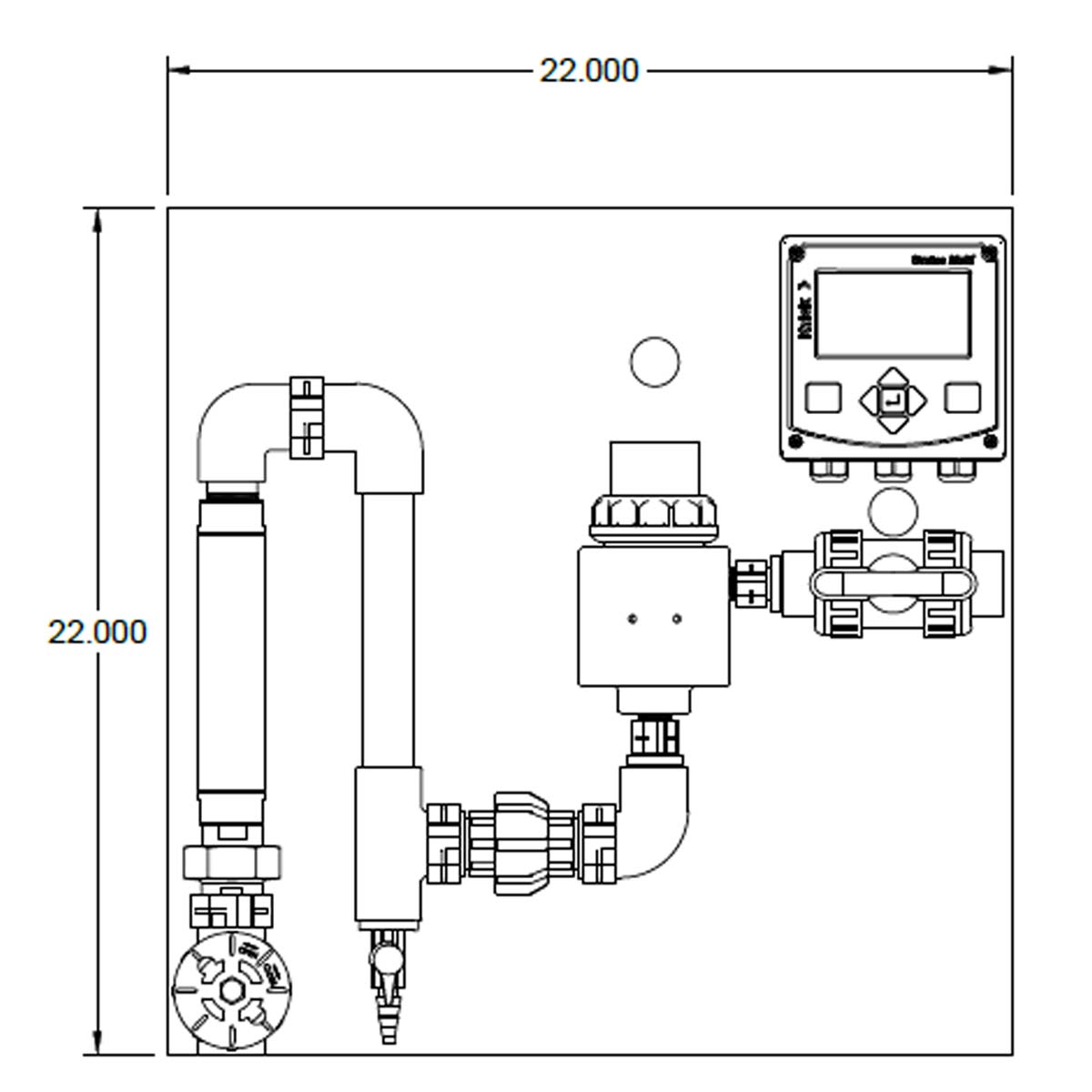

Dimensions		26″ W x 19″ H x 7″ D	22″ W x 22″ H x 7″ D
Ranges	Pressure	0…40 psig (0…2.75 bar)	0…40 psig (0…2.75 bar)
	Temperature	0…120 °F (-17…48 °C)	0…120 °F (-17…48 °C)
Construction	Wetted parts	SCH 80 PVC	SCH 80 PVC

Stainless Steel Options

Dimensions

Single Channel: 16″ W x 18″ H x 5.25″ D Multi-Channel: 16″ W x 18″ H x 5.25″ D

Ranges – Pressure

Single Channel: 0…145 psig (0…25 bar) Multi-Channel: 0…145 psig (0…25 bar)

Ranges – Temperature

Single Channel: 0…302 °F (-17…150 °C) Multi-Channel: 0…302 °F (-17…150 °C)

Construction – Wetted parts

Single Channel: 316 Stainless Steel Multi-Channel: 316 Stainless Steel

PVC Options

Dimensions

Single Channel: 26″ W x 19″ H x 7″ D Multi-Channel: 22″ W x 22″ H x 7″ D

Ranges – Pressure

Single Channel: 0…40 psig (0…2.75 bar) Multi-Channel: 0…40 psig (0…2.75 bar)

Ranges – Temperature

Single Channel: 0…120 °F (-17…48 °C) Multi-Channel: 0…120 °F (-17…48 °C)

Construction – Wetted parts

Single Channel: SCH 80 PVC Multi-Channel: SCH 80 PVC

Downloads

Title	Type
MP Monitoring Panels Spec Sheet	Technical Specifications	DOWNLOAD
DOWNLOAD
