Description

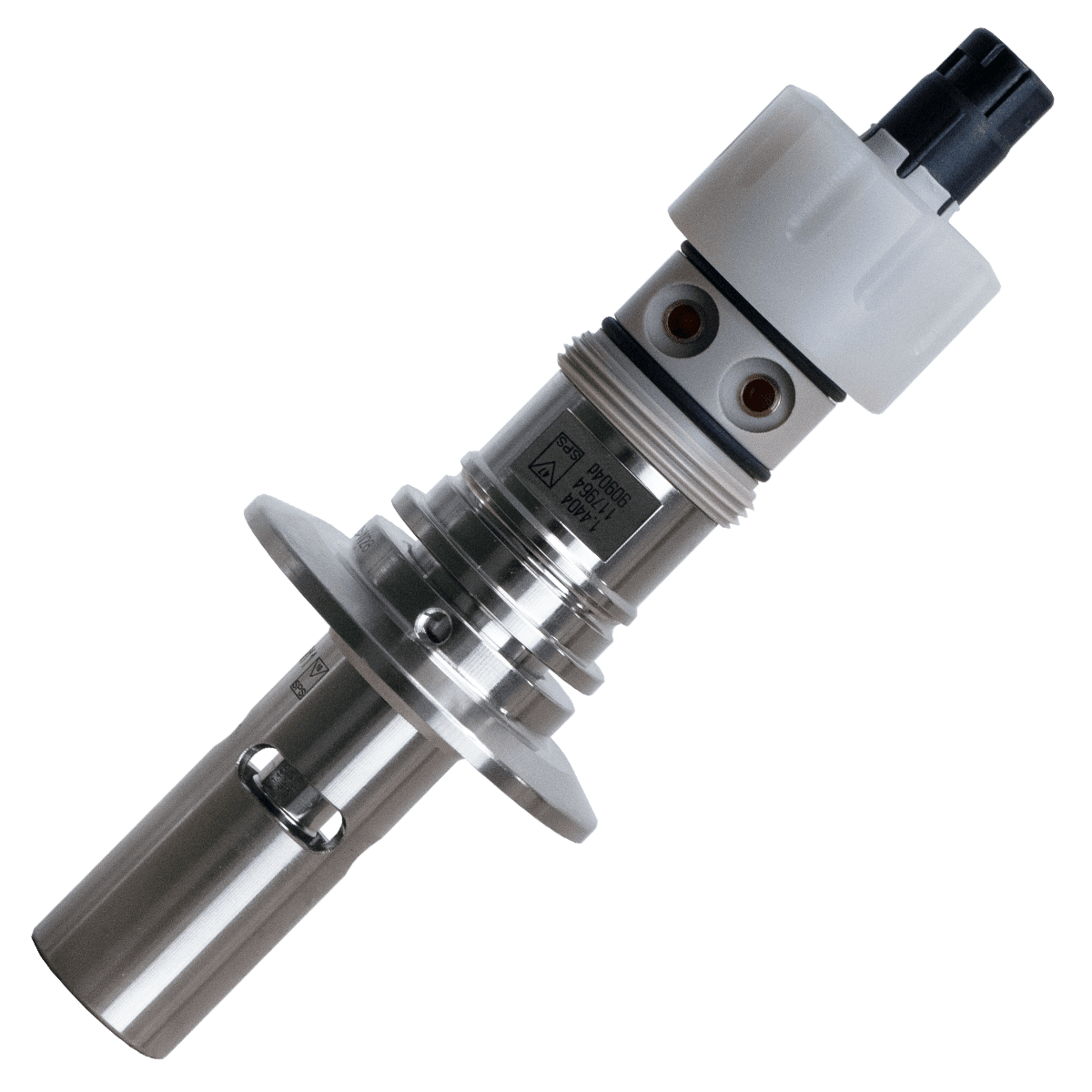

The SE605H is a Memosens coaxial conductivity sensor for hygienic applications. The electropolished sensor has a large measuring range for ultrapure water of 0.001…1,000 µS/cm. The user can mount this coaxial two-electrode sensor in virtually any orientation with its tri-clamp or Ingold connection. The sensor has robust, coaxially-arranged stainless steel electrodes. Operators can easily clean the sensor thanks to the detachable outer electrode. Additionally, an integrated temperature element assures that all conductivity measurements are accurately compensated for the process media temperature.
The robust sensor design, along with the integration of Memosens technology, provides a significant reduction in the overall cost of ownership. The SE605H is suitable for use with any M4 Knick transmitter. The sesor also has hazardous area approvals, cFMus Cl. 1 Div. 1, GP ABCD T3/T4/T6.
In addition, the SE605H is available with an optional
CondCheck configuration for sensor transmitter verification
Applications for the SE605H Low-Conductivity Sensor
- Ultra-pure water
- Water for injection (WFI)
- CIP + SIP installations
- Stream methane reforming
Conductivity with Memosens Technology
Memosens sensors provide several ease-of-use benefits and reduce operating costs:
- Submersible, inductive connection removes measurement influence from moisture and humidity
- Galvanically isolated, so there is no measurement influence from noise or ground loops.
- Technicians can perform calibrations and diagnostics in the shop or lab. As a result, this reduces field maintenance time and process downtime.
