SE 605 Conductivity / Resistivity Sensor Product Highlight

QUICK SPECS

Cell Constant: 0.021/cm ± 1%
Measuring Range: 0.04 … 1000 µS/cm
Accuracy: ± 4% of measured value
Repeatability: 0.2% of measured value + 3 nS/cm
Temperature:  14 … 248 °F (-10 … 120 °C)
Pressure: 0… 362 psig (0 … 25 bar)
Sensor Material: Cell and electrodes (316L Stainless Steel —
electropolish available for hygienic applications), PEEK insulator
Process Connection: 1″ NPT, 2″ ANSI, available with hygienic connections

• Steam Water Analysis Systems (SWAS):
  • Makeup Water
  • Condensate
  • Feedwater
  • Deaerator
  • Boiler water
• Reverse Osmosis
• Microfiltration/Ultrafiltration
• Ultra pure water (UPW) for semiconductor fabrication
• Water for injection (WIFI)

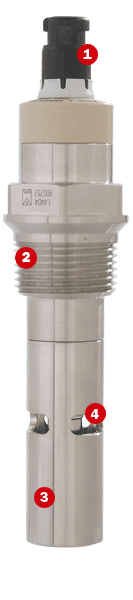

1 – SENSOR HEAD: Memosens Digital Sensing Technology

Memosens sensors provide several benefits with regard to ease of use and reduction of operating costs:

• Submersible inductive connection removes measurement influence from moisture and humidity that are commonly present in process applications.
• Galvanically isolated so there is no measurement influence from noise or ground loops. This is especially beneficial when using plastic holders.
• Calibration and diagnostics can be performed in the shop or lab.  This reduces field maintenance time and process down time.

2 – PROCESS CONNECTION: Options to fit your application

1″ NPT 2″ ANSI flange standard
Other connections, including hygienic options, available upon request

3 – ELECTRODE DESIGN: Coaxial, Two Electrode

Extremely low cell constant for high purity measurements. Furthermore, the removeable outer electrode is easily cleaned. 316L Stainless Steel with PEEK insulator.

4 – VENT: Removes air pockets

Vent allows for sensor to remain full and at equilibrium with the measured fluid
