CP Compact Panel

Sample Conditioning Panel

The M4 Knick CP compact panels are designed to condition applications with elevated temperature and pressure. Once the sample has been conditioned, it can be sent to the analyzers for continuous measurement and/or to take a manual sampling.

Includes Memosens measurement technology
Conditioning according to the ASME PTC 19.11
Plug and play into existing systems
Pre-tubed

Description

The CP Compact Panel is designed to condition any type of application with elevated temperature and pressure. This compact pre-tubed assembly provides optimal conditions for analyzing samples. Users must only connect the sample, drain, and cooling water supply. The panel meets ASME PTC-19.11 standards. The sample conditioning panel is expandable. You can customize it to incorporate specific conductivity, cation conductivity, pH, and dissolved oxygen analyzers in one panel. The panel maintains a constant flow and pressure. To do this, you can configure the systems with sample blowdown valves, pressure reducers, and sample coolers. The system utilizes sample and thermal shutoff valves to ensure safe operation.

Applications for the CP Compact Panel

Steam and water analysis
General high temperature and pressure applications

Specifications

Width	27.50″
Height	37.375″
Depth	8.75″
Pressure	3480.9 psig at 1004 °F (240 bar at 540 °C)
Temperature	Up to 1004 °F (540 °C)
Sample flow	Up to 21.9 gal/h (100 L/h)
Wetted parts	316 Stainless steel

Width

27.50″

Height

37.375″

Depth

8.75″

Pressure

3480.9 psig at 1004 °F (240 bar at 540 °C)

Temperature

Up to 1004 °F (540 °C)

Sample flow

Up to 21.9 gal/h (100 L/h)

Wetted parts

316 Stainless steel

Downloads

Title	Type
Sample Conditioning & SWAS Application Data Sheet	Application Data Sheet	DOWNLOAD
DOWNLOAD
CP Compact Panel Product Highlight	Product Highlight	DOWNLOAD
DOWNLOAD
Sample Conditioning Prezi – Requires Internet Connection	Prezi Online	DOWNLOAD
DOWNLOAD
Compact Panel Manual	Manual	DOWNLOAD
DOWNLOAD
Compact Panel Spec Sheet	Technical Specifications	DOWNLOAD
DOWNLOAD
Outline Drawing: CP Low Pressure Low Temp Dual Channel	Outline Drawing	DOWNLOAD
DOWNLOAD
Outline Drawing: CP High Pressure High Temp Single Channel	Outline Drawing	DOWNLOAD
DOWNLOAD
Outline Drawing: CP High Pressure High Temp Dual Channel	Outline Drawing	DOWNLOAD
DOWNLOAD
Outline Drawing: CP Low Pressure Low Temp Single Channel	Outline Drawing	DOWNLOAD
DOWNLOAD

Complete Your Loop...

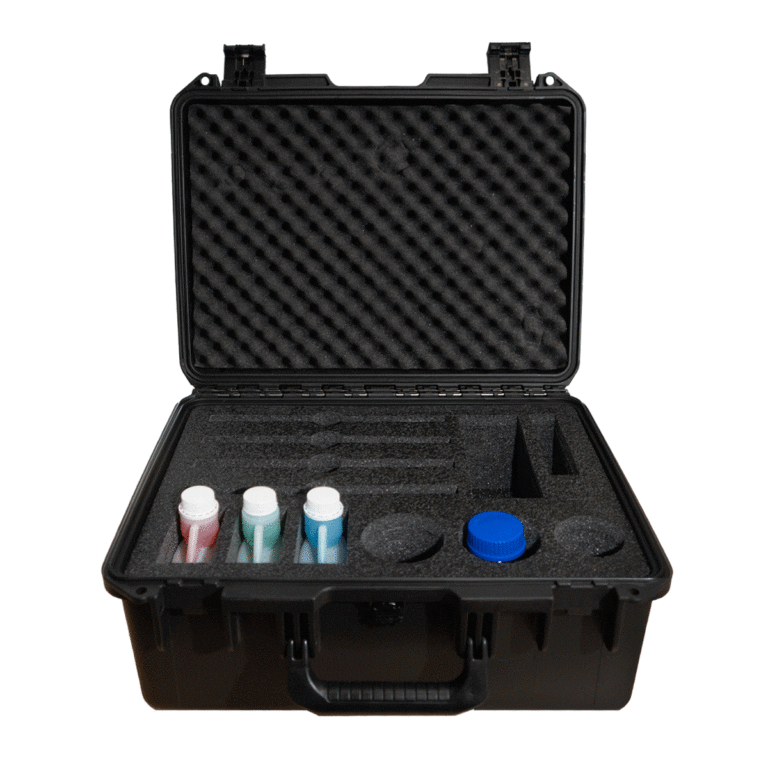

Calibration Station

Mobile Sensor Calibration, Storage & Transport

Calibration Station

Mobile Sensor Calibration, Storage & Transport

Calibration Station

Mobile Sensor Calibration, Storage & Transport

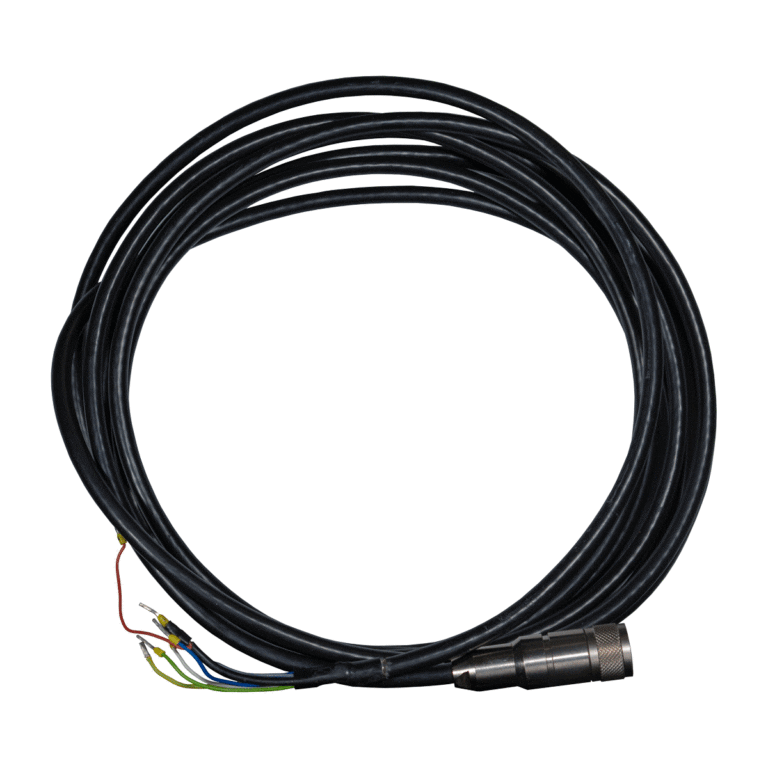

VarioPin Cable

Analog Sensor Cable

VarioPin Cable

Analog Sensor Cable

VarioPin Cable

Analog Sensor Cable

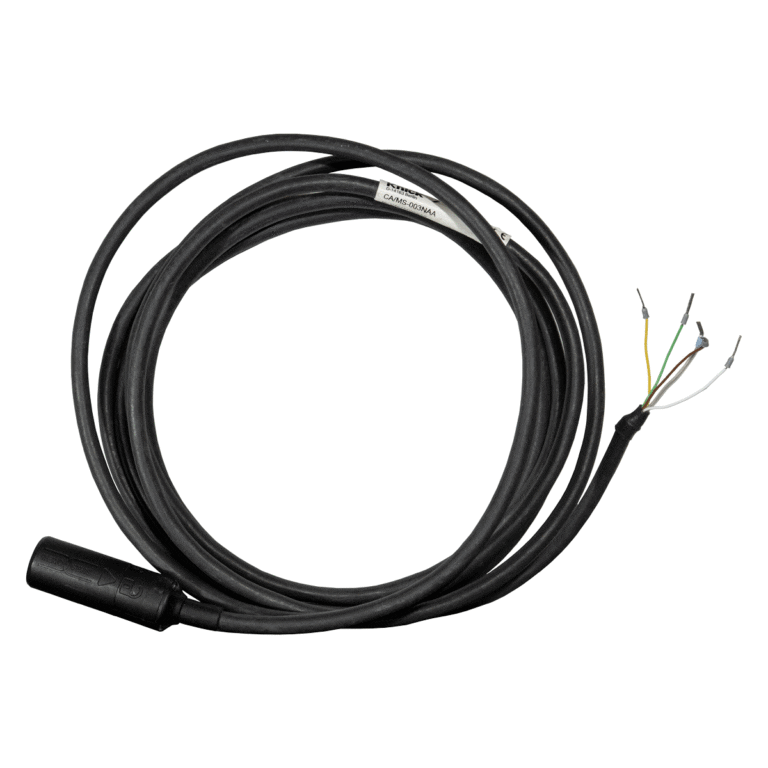

Memosens Cable

Digital Sensor Cable

Memosens Cable

Digital Sensor Cable

Memosens Cable

Digital Sensor Cable

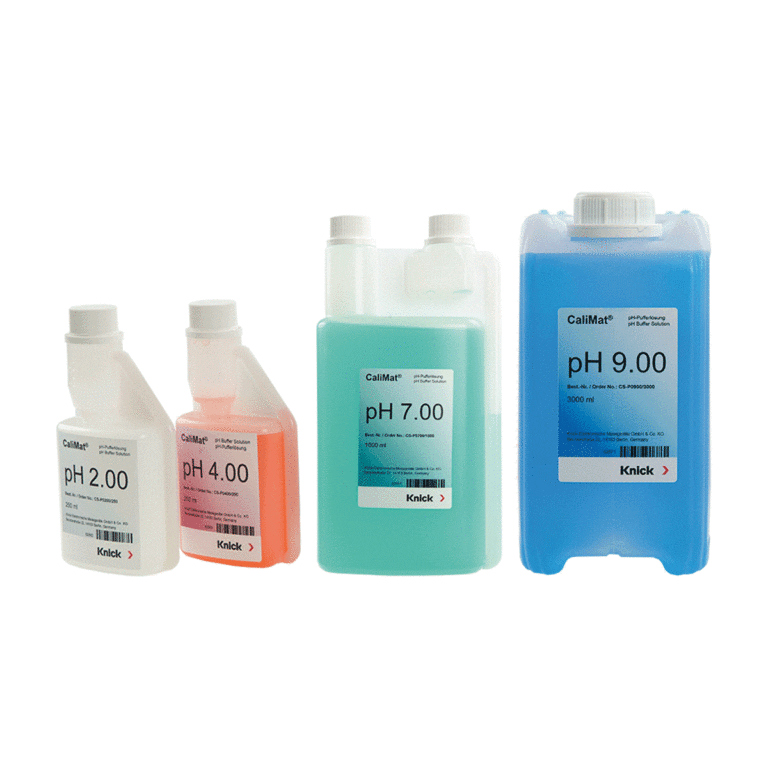

CaliMat Buffers
